Grating Test

Grating Load test & deflection measuring

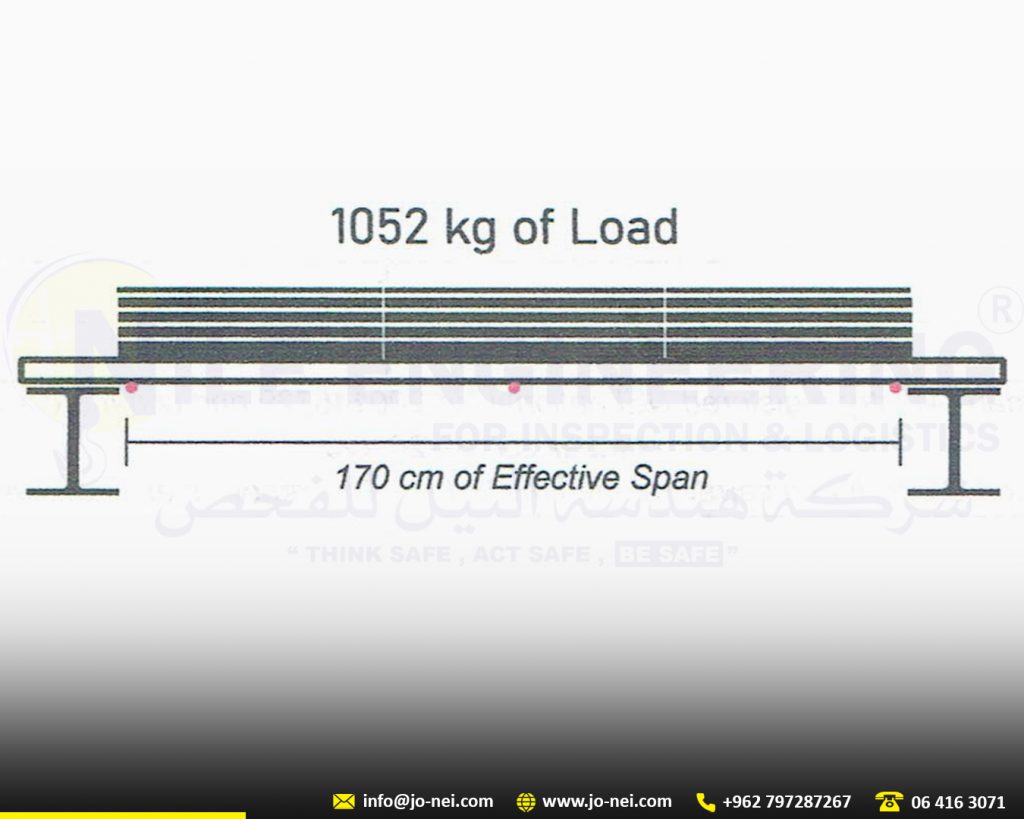

the test conducted according to method test point “A” only (Uniformly distributed load) from procedure number (QP-15-P10)

The test was witnessed by Arab Potash Company (APC)

RESOURCES USED TO EXECUTE THE JOB:

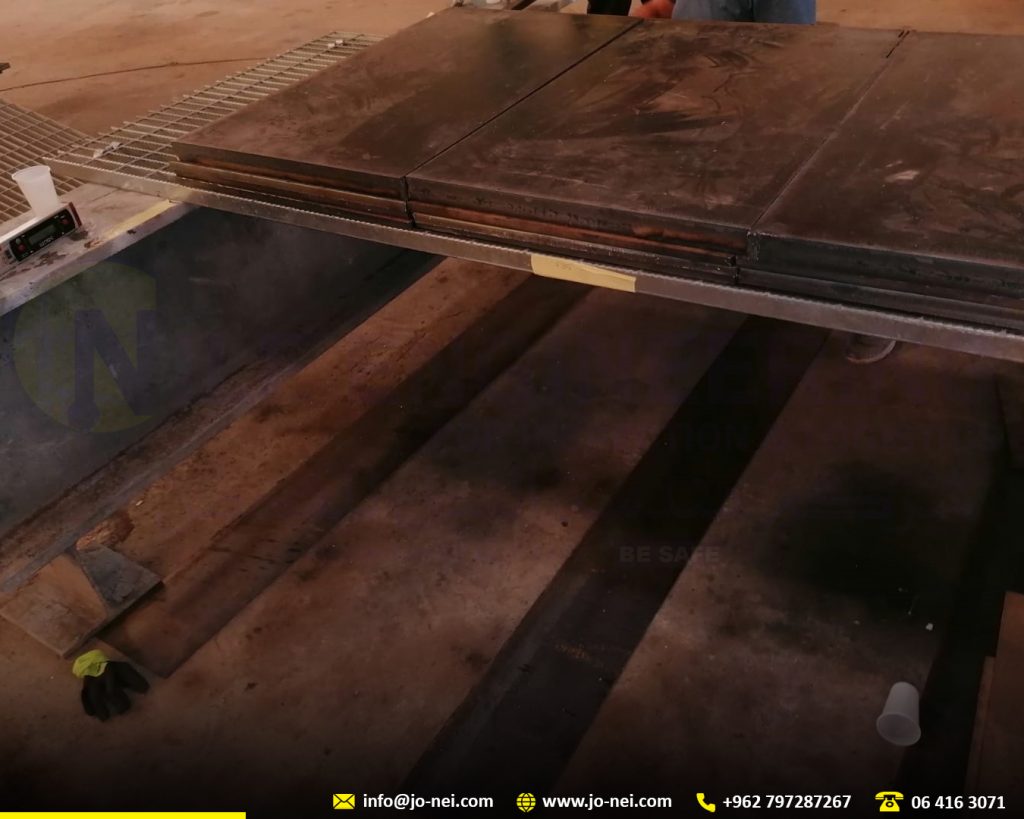

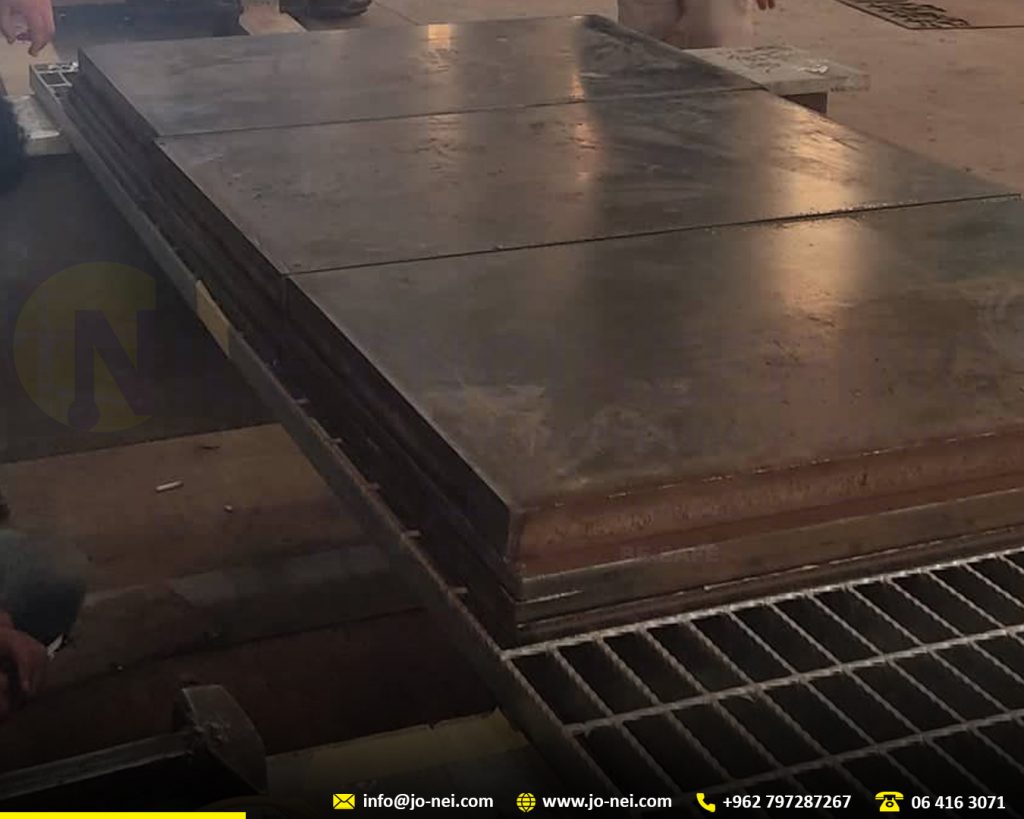

  • Loads: – 4 Customized Metal sheets with total of 1053 kg (1 with dimension of 171 cm X 90 cm & 40 mm thick, 3 with dimension of 171 cm X 91 cm & 15 mm thick)

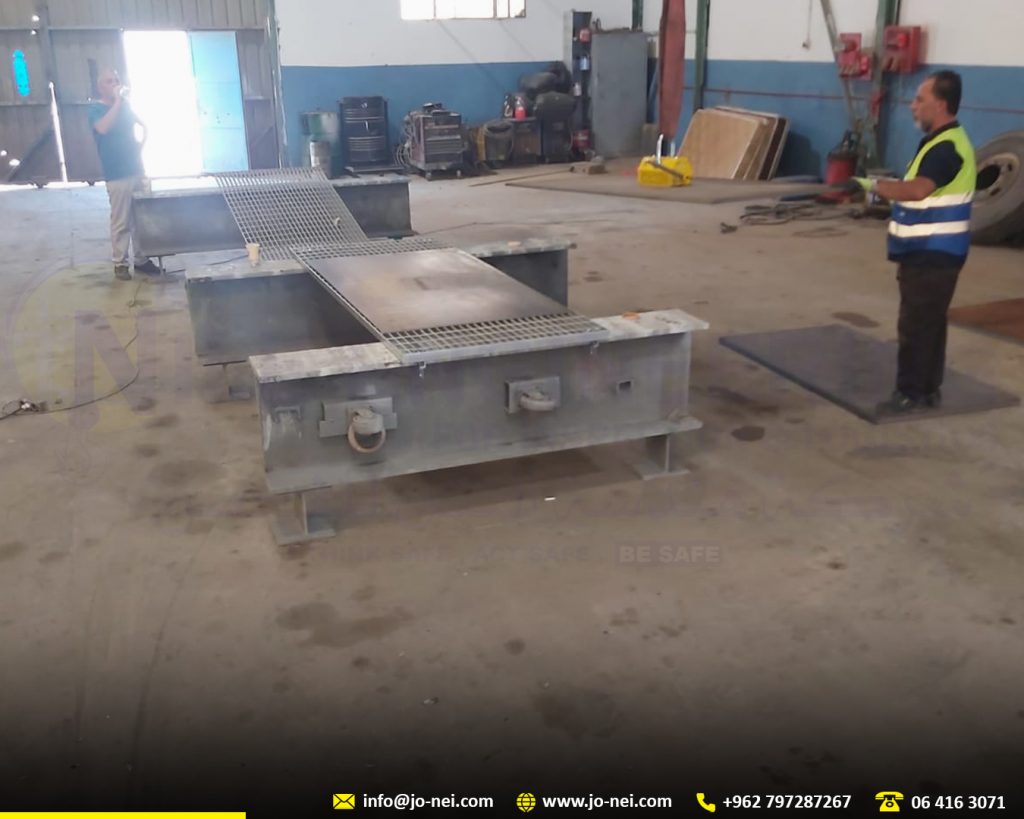

  • 3 Support stands

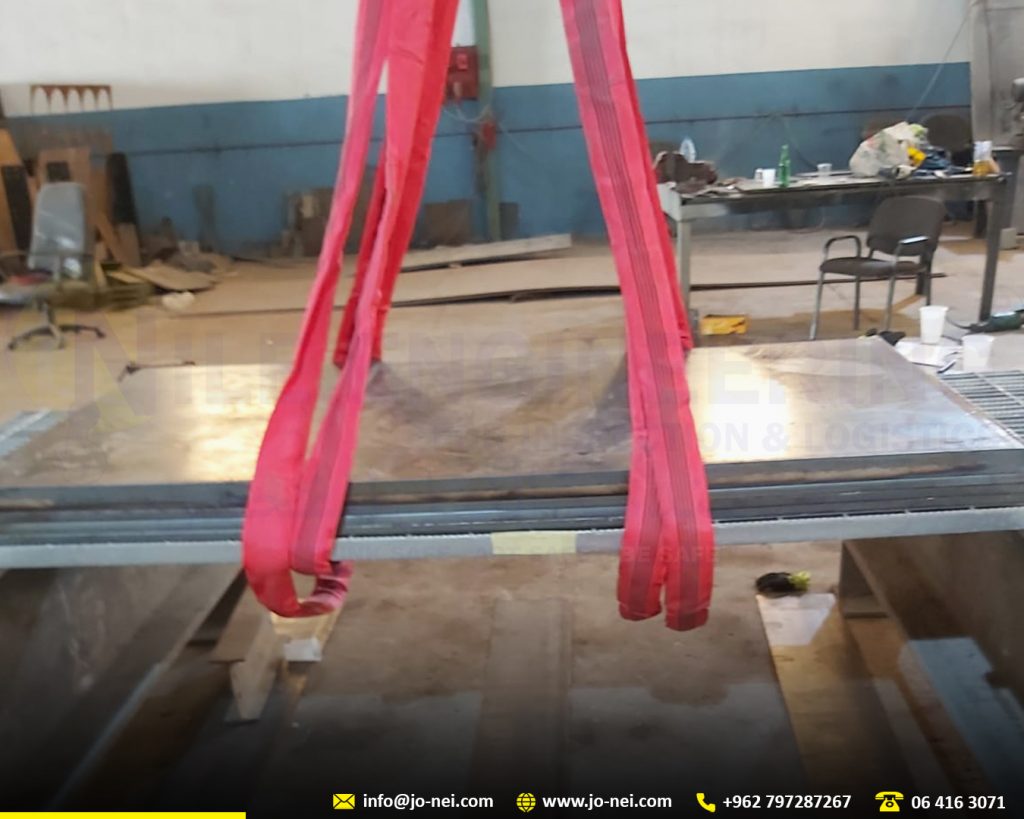

  • Permanent Magnetic Lifter

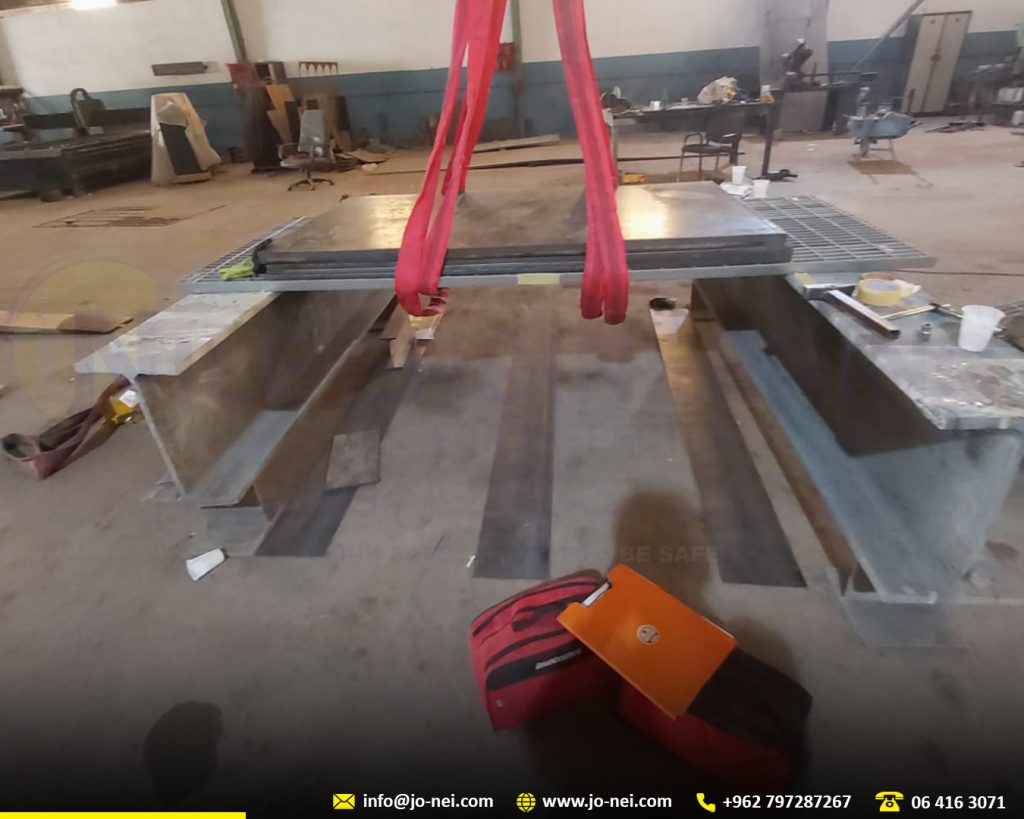

  • Overhead Crane
  • Laser Meter
  • Level Indicator
  • A ruler tape
  • Marker
  • grating clamps
  • Grating samples with dimension of 580 cm X 92 cm
